ROTARY GEAR PUMP

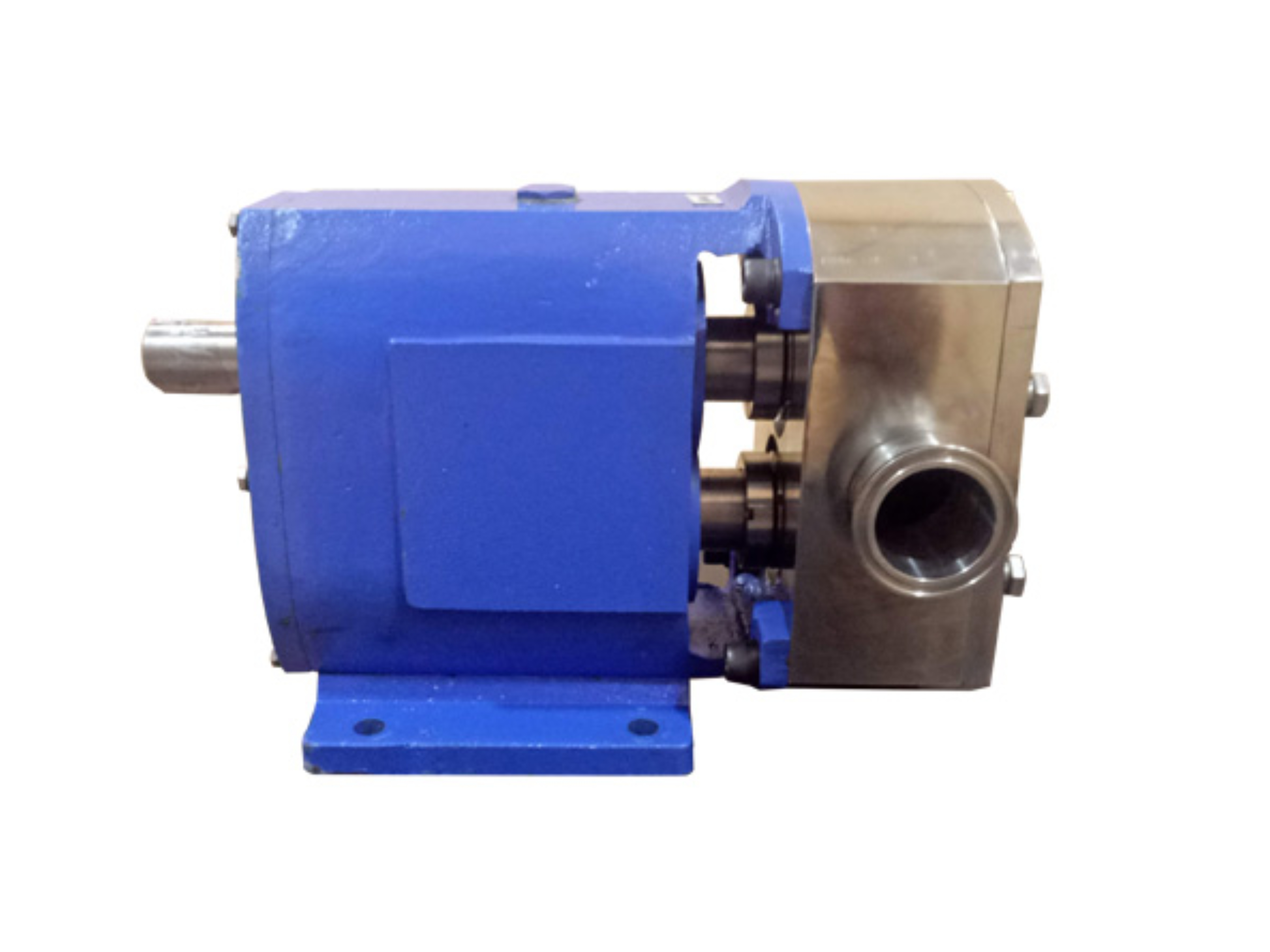

VTL SERIES ROATARY LOBE PUMP
FEATURES:
- Pump body has an internal flat profile and is free draining with vertical ports
- Cover is free draining in horizontal or vertical port positions
- Rotor/Shaft connection sealed from product zone
- SMS connection standard, Sanitary Clamp optional
- Tri Lobe Standard, Wing Lobe optional
- Mechanical seal standard. Double Seal optional
- Jacketed cover optional
- Standard Stainless Steel SS316 steel pump body and cover SS316L optional
- Electro- polish of product contact surfaces optional
- Stainless steel base frame optional
Buy Now
-
-
- Bakery: Batters, Flavoring Frostings, Fats & oil Sweeteners, Yeast, Slurry, Ketchup & jam
- Beverages: Beer, Wort, Yeast soft Drinks,Fruit Drinking, Juice concentrate
- Canning: Baby foods, Shop, Fruit Puree Puddings, Jellies, Salad Dressings, Mayonnaise
- Confectionery: Syrups, Cream fillings, Chocolate, Glucose
- Cosmetics: Face Creams & Lotions, Hair Styling Gels, Liquid Essential oils, Dyes & Alcohols, Lotions, Shampoo
- Dairy: Cream, Milk Ice Cream, Mix Yogurt, Curd
- Chemical/ Industrial: Solvent Fuels, Oil & Lubrication, Shops, Detergents, Paint & Glues
| Model No. |
Standard Port Size |
Displacement at 100 rev |
Max. Differential Pressure |
Max. Speed (RPM) |
| Inch |
mm |
Liter |
US Gallon |
Bar |
PSI |
| VTL-05 |
1 |
25 |
5 |
1.4 |
7 |
105 |
1000 |
| VTL-08 |
1 |
25 |
8 |
2.25 |
7 |
105 |
1000 |
| VTL-12 |
1½ |
40 |
12 |
3.38 |
7 |
105 |
1000 |
| VTL-18 |
1½ |
40 |
18 |
4.78 |
7 |
105 |
1000 |
| VTL-28 |
2 |
50 |
28 |
7.03 |
7 |
105 |
750 |
| VTL-38 |
2 |
50 |
38 |
10.15 |
7 |
105 |
750 |
| VTL-55 |
2½ |
65 |
55 |
14.64 |
7 |
105 |
600 |
| VTL-79 |
2½ |
65 |
79 |
20.87 |
7 |
105 |
600 |
| VTL-115 |
3 |
80 |
115 |
30.65 |
7 |
105 |
500 |
| VTL-180 |
3 |
80 |
180 |
44.39 |
7 |
105 |
500 |
| VTL-260 |
4 |
100 |
260 |
68.70 |
7 |
105 |
400 |
| VTL-355 |
4 |
100 |
355 |
93.26 |
7 |
105 |
400 |
...
